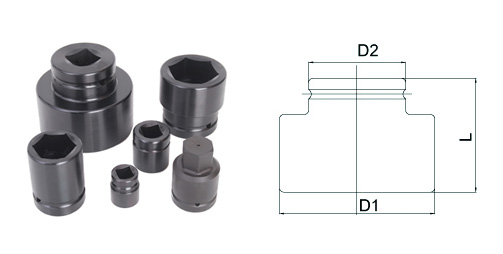

重載套筒：
|
型號 |
驅動軸 |
螺栓規格 |
螺母對邊 |
外形尺寸 |
||
|
L1 |
D1 |
D2 |
||||
|
HS124 |
3/4″ |
M16 |
S24 |
46 |
38 |
35 |
|
HS127 |
3/4″ |
M18 |
S27 |
48 |
42 |
36 |
|
HS130 |
3/4″ |
M20 |
S30 |
50 |
46 |
38 |
|
HS134 |
3/4″ |
M22 |
S34 |
52 |
48 |
40 |
|
HS136 |
3/4″ |
M24 |
S36 |
54 |
52 |
42 |
|
HS141 |
3/4″ |
M27 |
S41 |
57 |
58 |
44 |
|
HS146 |
3/4″ |
M30 |
S46 |
60 |
64 |
46 |
|
HS150 |
3/4″ |
M33 |
S50 |
63 |
70 |
48 |
|
HS155 |
3/4″ |
M36 |
S55 |
66 |
76 |
50 |
|
HS230 |
1″ |
M20 |
S30 |
65 |
45 |
45 |
|
HS234 |
1″ |
M22 |
S34 |
67 |
47 |
47 |
|
HS236 |
1″ |
M24 |
S36 |
69 |
52 |
52 |
|
HS241 |
1″ |
M27 |
S41 |
72 |
59 |
52 |
|
HS246 |
1″ |
M30 |
S46 |
75 |
65 |
52 |
|
HS250 |
1″ |
M33 |
S50 |
77 |
71 |
52 |
|
HS255 |
1″ |
M36 |
S55 |
77 |
79 |
52 |
|
HS260 |
1″ |
M39 |
S60 |
79 |
84 |
53 |
|
HS265 |
1″ |
M42 |
S65 |
83 |
90 |
56 |
|
HS270 |
1″ |
M45 |
S70 |
86 |
98 |
61 |
|
HS275 |
1″ |
M48 |
S75 |
89 |
104 |
64 |
|
HS336 |
1-1/2″ |
M24 |
S36 |
79 |
63 |
69 |
|
HS341 |
1-1/2″ |
M27 |
S41 |
87 |
63 |
69 |
|
HS346 |
1-1/2″ |
M30 |
S46 |
90 |
69 |
69 |
|
HS350 |
1-1/2″ |
M33 |
S50 |
92 |
76 |
76 |
|
HS355 |
1-1/2″ |
M36 |
S55 |
92 |
82 |
82 |
|
HS360 |
1-1/2″ |
M39 |
S60 |
94 |
90 |
86 |
|
HS365 |
1-1/2″ |
M42 |
S65 |
97 |
99 |
86 |
|
HS370 |
1-1/2″ |
M45 |
S70 |
100 |
108 |
86 |
|
HS375 |
1-1/2″ |
M48 |
S75 |
103 |
116 |
86 |
|
HS380 |
1-1/2″ |
M52 |
S80 |
110 |
123 |
88 |
|
型號 |
驅動軸 |
螺栓規格 |
螺母對邊 |
外形尺寸 |
||
|
L1 |
D1 |
D2 |
||||
|
HS385 |
1-1/2″ |
M56 |
S85 |
114 |
130 |
90 |
|
HS390 |
1-1/2″ |
M60 |
S90 |
116 |
138 |
92 |
|
HS395 |
1-1/2″ |
M64 |
S95 |
120 |
145 |
94 |
|
HS3100 |
1-1/2″ |
M68 |
S100 |
124 |
153 |
96 |
|
HS3105 |
1-1/2″ |
M72 |
S105 |
126 |
160 |
100 |
|
HS3110 |
1-1/2″ |
M76 |
S110 |
129 |
176 |
110 |
|
HS3115 |
1-1/2″ |
M80 |
S115 |
133 |
182 |
116 |
|
HS3120 |
1-1/2″ |
M85 |
S120 |
138 |
188 |
122 |
|
HS3130 |
1-1/2″ |
M90 |
S130 |
148 |
199 |
133 |
|
HS650 |
2-1/2″ |
M33 |
S50 |
76 |
114 |
114 |
|
HS655 |
2-1/2″ |
M36 |
S55 |
99 |
114 |
114 |
|
HS660 |
2-1/2″ |
M39 |
S60 |
102 |
114 |
114 |
|
HS665 |
2-1/2″ |
M42 |
S65 |
105 |
114 |
114 |
|
HS670 |
2-1/2″ |
M45 |
S70 |
108 |
114 |
114 |
|
HS675 |
2-1/2″ |
M48 |
S75 |
113 |
116 |
116 |
|
HS680 |
2-1/2″ |
M52 |
S80 |
120 |
123 |
120 |
|
HS685 |
2-1/2″ |
M56 |
S85 |
124 |
130 |
124 |
|
HS690 |
2-1/2″ |
M60 |
S90 |
126 |
138 |
128 |
|
HS695 |
2-1/2″ |
M64 |
S95 |
130 |
145 |
132 |
|
HS6100 |
2-1/2″ |
M68 |
S100 |
134 |
153 |
136 |
|
HS6105 |
2-1/2″ |
M72 |
S105 |
138 |
160 |
140 |
|
HS6110 |
2-1/2″ |
M76 |
S110 |
142 |
168 |
144 |
|
HS6115 |
2-1/2″ |
M80 |
S115 |
146 |
175 |
148 |
|
HS6120 |
2-1/2″ |
M85 |
S120 |
152 |
182 |
150 |
|
HS6130 |
2-1/2″ |
M90 |
S130 |
156 |
196 |
152 |
|
HS6135 |
2-1/2″ |
M95 |
S135 |
162 |
212 |
155 |
|
HS6145 |
2-1/2″ |
M100 |
S145 |
167 |
228 |
158 |
|
HS6150 |
2-1/2″ |
M105 |
S150 |
172 |
230 |
160 |
|
HS6155 |
2-1/2″ |
M110 |
S155 |
177 |
232 |
160 |
|
HS6165 |
2-1/2″ |
M115 |
S165 |
182 |
240 |
174 |

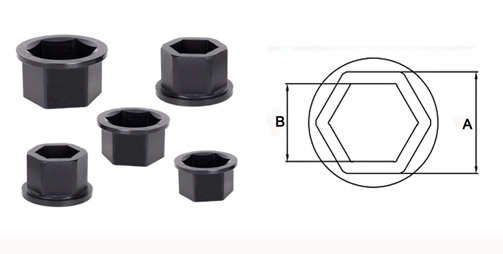

中空扳手插件
扳手型號 |
工作頭 |
適用螺母對邊 |
過渡插件規格型號 |
|||||
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
|||
2XLCT |
2CT-50 |
50 |
50/46 |
50/41 |
50/36 |
50/32 |
50/30 |
50/27 |
2CT-46 |
46 |
46/41 |
46/36 |
46/32 |
46/30 |
46/27 |
|
|
2CT-41 |
41 |
41/36 |
41/32 |
41/30 |
41/27 |
|
|
|
2CT-36 |
36 |
36/32 |
36/30 |
36/27 |
|
|
|
|
2CT-32 |
32 |
32/30 |
32/27 |
|
|
|
|
|
2CT-30 |
30 |
30/27 |
|
|
|
|
|
|
2CT-27 |
27 |
|
|
|
|
|
|
|
4XLCT |
4CT-65 |
65 |
65/60 |
65/55 |
65/50 |
65/46 |
65/41 |
65/36 |
4CT-60 |
60 |
60/55 |
60/50 |
60/46 |
60/41 |
60/36 |
60/32 |
|
4CT-55 |
55 |
55/50 |
55/46 |
55/41 |
55/36 |
55/32 |
55/30 |
|
4CT-50 |
50 |
50/ |
50/46 |
50/41 |
50/36 |
50/32 |
50/30 |
|
4CT-46 |
46 |
46/ |
46/ |
46/ |
46/ |
46/ |
|
|
4CT-41 |
41 |
41/36 |
41/32 |
41/30 |
41/27 |
|
|
|
4CT-36 |
36 |
36/32 |
36/30 |
36/27 |
|
|
|
|
4CT-32 |
32 |
32/30 |
32/27 |
|
|
|
|
|
4CT-30 |
30 |
30/27 |
|
|
|
|
|
|
4CT-27 |
27 |
|
|
|
|
|
|
|
8XLCT |
8CT-90 |
90 |
90/85 |
90/80 |
90/75 |
90/70 |
90/65 |
90/60 |
8CT-85 |
85 |
85/80 |
85/75 |
85/70 |
85/65 |
85/60 |
85/55 |
|
8CT-80 |
80 |
80/75 |
85/70 |
85/65 |
85/60 |
85/55 |
85/50 |
|
8CT-75 |
75 |
75/70 |
75/65 |
75/60 |
75/55 |
75/50 |
|
|
8CT-70 |
70 |
70/65 |
70/60 |
70/55 |
70/50 |
|
|
|
8CT-65 |
65 |
65/60 |
65/55 |
65/50 |
|
|
|
|
8CT-60 |
60 |
60/55 |
60/50 |
|
|
|
|
|
8CT-55 |
55 |
55/50 |
|
|
|
|
|
|
8CT-50 |
50 |
|
|
|
|
|
|
|
扳手型號 |
工作頭 型號 |
適用螺母對邊 （mm） |
過渡插件規格型號 |
|||||
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
A→B（mm） |
|||
14XLCT |
14CT-115 |
115 |
115/110 |
115/105 |
115/100 |
115/95 |
115/90 |
115/85 |
14CT-110 |
110 |
110/105 |
110/100 |
110/95 |
110/90 |
110/85 |
110/80 |
|
14CT-105 |
105 |
105/100 |
105/95 |
105/90 |
105/85 |
105/80 |
105/75 |
|
14CT-100 |
100 |
100/95 |
100/90 |
100/85 |
100/80 |
100/75 |
100/70 |
|
14CT-95 |
95 |
95/90 |
95/85 |
95/80 |
95/75 |
95/70 |
95/65 |
|
14CT-90 |
90 |
90/85 |
90/80 |
90/75 |
90/70 |
90/65 |
|
|
14CT-85 |
85 |
85/80 |
85/75 |
85/70 |
85/65 |
|
|
|
14CT-80 |
80 |
80/75 |
80/70 |
80/65 |
|
|
|
|
14CT-75 |
75 |
75/70 |
75/65 |
|
|
|
|
|
14CT-70 |
70 |
70/65 |
|
|
|
|
|
|
14CT-65 |
65 |
|
|
|
|
|
|
|
18XLCT |
18CT-135 |
135 |
135/130 |
135/120 |
135/115 |
135/110 |
135/105 |
135/100 |
18CT-130 |
130 |
130/120 |
130/115 |
130/110 |
130/105 |
130/100 |
130/95 |
|
18CT-120 |
120 |
120/115 |
120/110 |
120/105 |
120/100 |
120/95 |
120/90 |
|
18CT-115 |
115 |
115/110 |
115/105 |
115/100 |
115/95 |
115/90 |
115/85 |
|
18CT-110 |
110 |
110/105 |
110/100 |
110/95 |
110/90 |
110/85 |
110/80 |
|
18CT-105 |
105 |
105/100 |
105/95 |
105/90 |
105/85 |
105/80 |
105/75 |
|
18CT-100 |
100 |
100/95 |
100/90 |
100/85 |
100/80 |
100/75 |
|
|
18CT-95 |
95 |
95/90 |
95/85 |
95/80 |
95/75 |
|
|
|
18CT-90 |
90 |
90/85 |
90/80 |
90/75 |
|
|
|
|
18CT-85 |
85 |
85/80 |
85/75 |
|
|
|
|
|
18CT-80 |
80 |
80/75 |
|
|
|
|
|
|
18CT-75 |
75 |
|
|
|
|
|
|
|
30XLCT |
30CT-155 |
155 |
155/145 |
155/130 |
155/120 |
155/115 |
155/110 |
155/105 |
30CT-145 |
145 |
145/130 |
145/120 |
145/115 |
145/110 |
145/105 |
145/100 |
|
30CT-130 |
130 |
130/120 |
130/115 |
130/110 |
130/105 |
130/100 |
130/95 |
|
30CT-120 |
120 |
120/115 |
120/110 |
120/105 |
120/100 |
120/95 |
120/90 |
|
30CT-115 |
115 |
115/110 |
115/105 |
115/100 |
115/95 |
115/90 |
115/85 |
|
30CT-110 |
110 |
110/105 |
110/100 |
110/95 |
110/90 |
110/85 |
110/80 |
|
30CT-105 |
105 |
105/100 |
105/95 |
105/90 |
105/85 |
105/80 |
|
|
30CT-100 |
100 |
100/95 |
100/90 |
100/85 |
100/80 |
|
|
|
30CT-95 |
95 |
95/90 |
95/85 |
95/80 |
|
|
|
|
30CT-90 |
90 |
90/85 |
90/80 |
|
|
|
|
|
30CT-85 |
85 |
85/80 |
|
|
|
|
|
|
30CT-80 |
80 |
|
|
|
|
|
|
|
